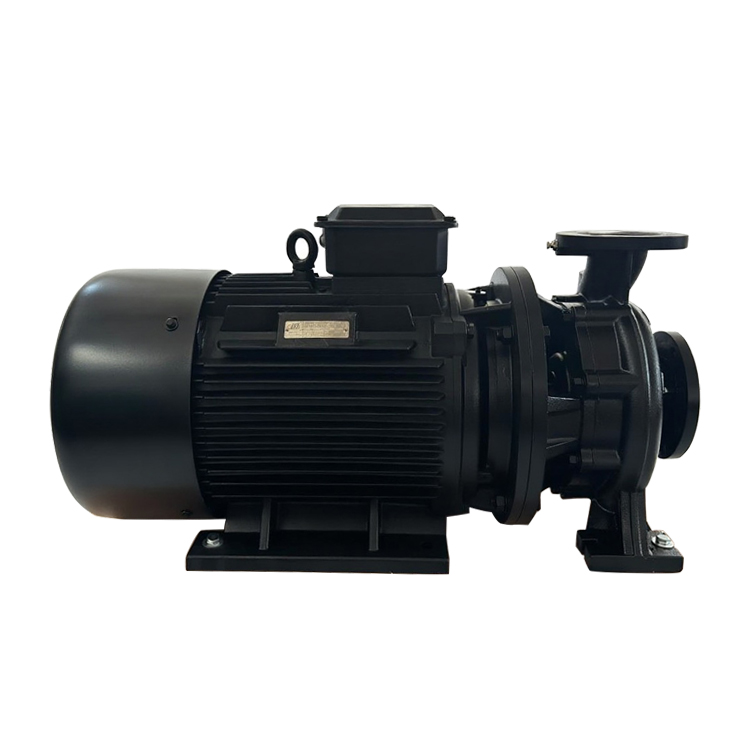

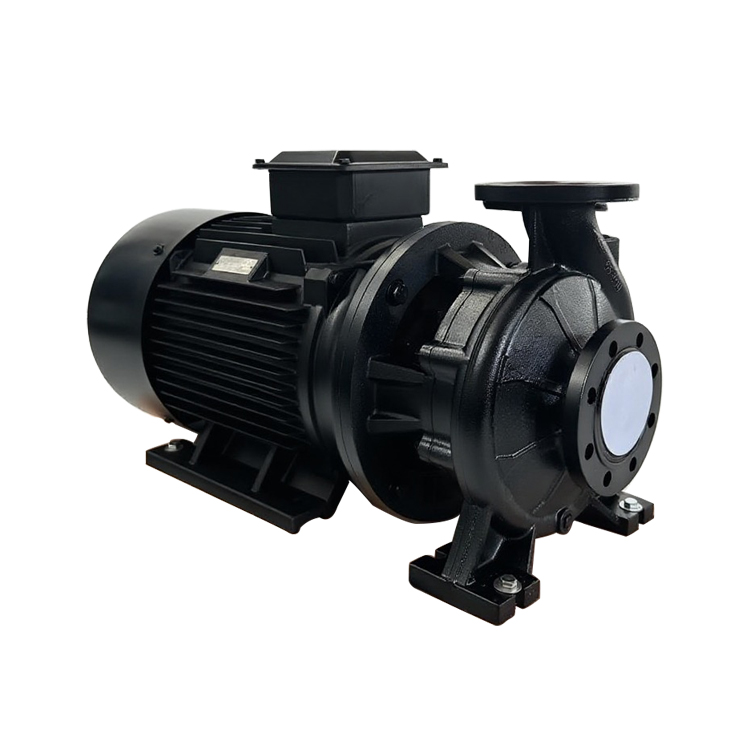

The structural characteristics of XST water pump adopt a single impeller centrifugal pump design, with axial suction and radial discharge. The inlet and outlet comply with EN733 (EX DIN24255) and UNI7467 regulations, and the flange complies with UNI2236 and DIN2532 regulations. Equipped with a pull-out design, the impeller, control valve, and motor can be removed when connecting the pump body pipeline for easy maintenance. The performance parameters of XST water pump range from 0.75kw to 55kw, with a flow rate of up to 220m ³/h and a head of up to 95m. The temperature standard for the pumped liquid is -10 ° C to 85 ° C, and the maximum operating pressure is 12bar (PN12). XST water pump motor features three-phase asynchronous, squirrel cage rotor, enclosed structure, and external ventilation. The protection level is IP54, the insulation level is F, and the ambient temperature does not exceed+40 ° C.
XST water pumps are widely used in the field of water supply, such as filtration and transportation in water plants, and main pipeline pressurization; In the industrial field, such as flushing and cleaning systems, boiler feedwater, etc; In the field of water treatment, such as ultrafiltration systems, reverse osmosis systems, etc., they can also be used for agricultural irrigation, fire protection systems, etc.
