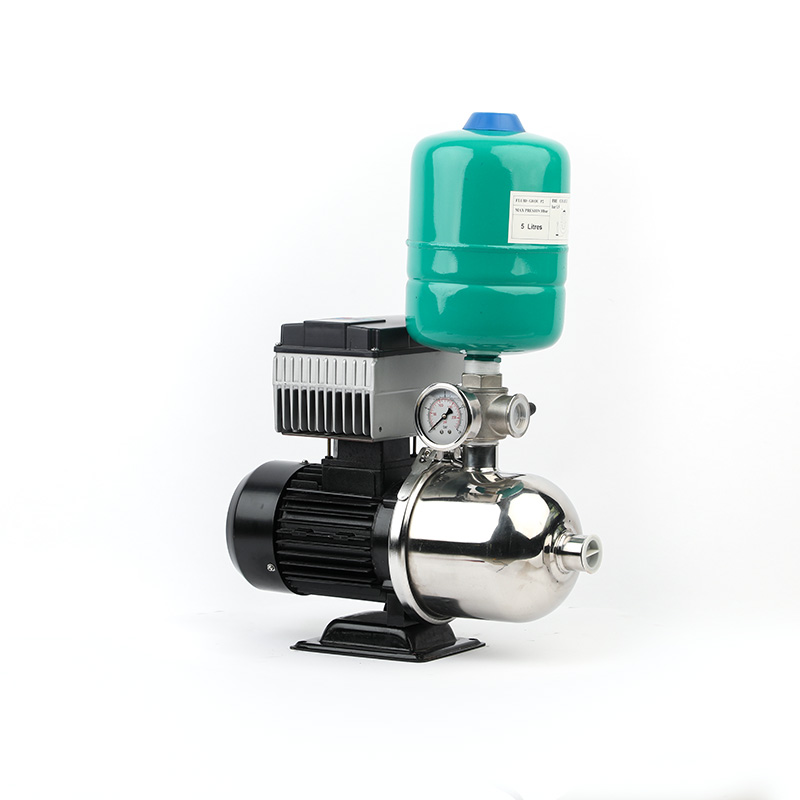

CHL intelligent variable frequency Booster Pump
Short Description:

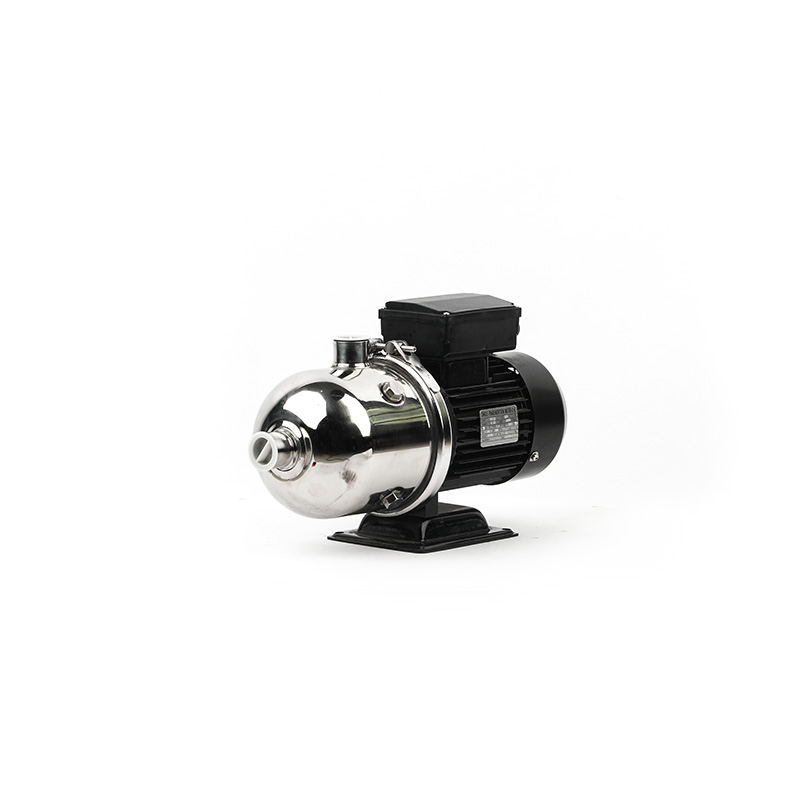

The CHL horizontal variable frequency multi-stage pump adopts a horizontal structure, with a compact exterior design and a small footprint. The pump body is usually made of high-quality materials such as cast iron or stainless steel, which have good corrosion resistance and wear resistance. It consists of multiple impellers and guide vanes, which are connected in series through a shaft to achieve multi-stage boosting and generate high head.
By relying on the motor to drive the impeller to rotate, the liquid obtains centrifugal force in the impeller and is thrown out. Through the guide vanes, the kinetic energy of the liquid is converted into pressure energy, and then it enters the next stage impeller for further pressurization. This process is repeated repeatedly, ultimately achieving the goal of transporting the liquid from the low-pressure area to the high-pressure area. And through frequency conversion technology, the motor speed can be precisely adjusted according to the actual working conditions, thereby changing the pump flow and head, achieving energy-saving and precise control effects.
The flow range is generally between small to medium flow rates, such as several cubic meters to tens of cubic meters per hour; The head can vary from tens of meters to hundreds of meters according to different stages and models; There are also multiple options for motor power, ranging from lower to higher power, to meet different operating conditions.
Summary
CHL series constant pressure frequency conversion water supply system is composed of newest great performance PID frequency conversion controlling cabinet and more than 2 pumps. It is the top technical water boosting equipment, which can automatically adjust to satisfy the requirement of constant pressure, variable water demand. The pressure of water supply net can be kept constant. The whole water supply system can be at best effective, energy saving, perfect status. There are two ways of water supply, they are frequency convention water supply and pressure water supply. Frequency water supply is automatically adjust the rotation speed of one pump or run/stop one or more pumps, which is the best water supply way to keep the water supply net to be stable. It is easy to use.
Features
1.Solve the low pressure problem: Use the constant pressure, frequency conversion water supply system to keep the pressure stable of the whole building.
2.To avoid the pollution of the tank on the top of the roof. It takes place the traditional roof tank water supply way, erase the source of water pollution.
Main application
Residential water supply: High building, residential area, villa, etc.
Public places: Hospital, university, gymnasium, golf course, airport, etc.
Commercial building: Hotel, office building, department store, large-scale sauna center.
Irrigation: Park, playing round, garden, farm, etc.
Manufacturing industry: Manufacturing, lavation equipment, food industry, factory, etc.
Working Condition
Convey liquid: cold, warm, clean, non-flammable, non-explosive liquid, not consisted of solid grain or fiber.
Medium temperature: Normal temperature type -15°C~+70°C; Hot water type + 70°C~+ 120°C;
Ambient environment: No drop, vapor, no floating dust or metal grain. No sunshine, hot temperature, heavy dust. No corrosive, non-flammable gas or liquid.
The equipment should be placed in no vibration place and in the place where it is easy to check.
Ambient temperature: Max +45 º C, ventilated
